WPC-89 Williams/Bally Field Tester 584-T
SOLD on 02-11-18

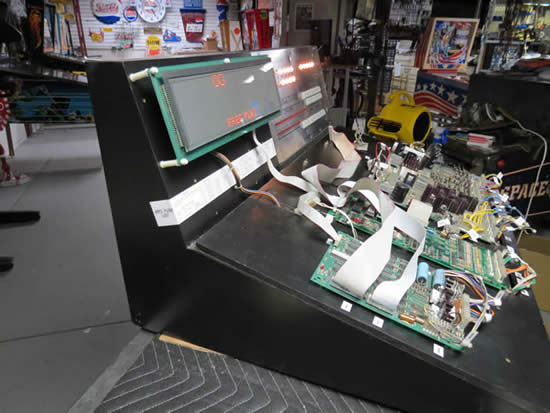

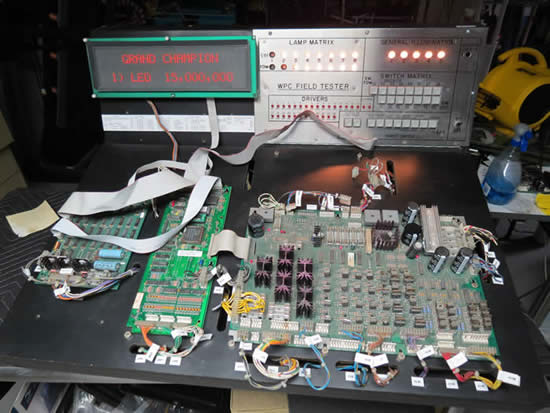

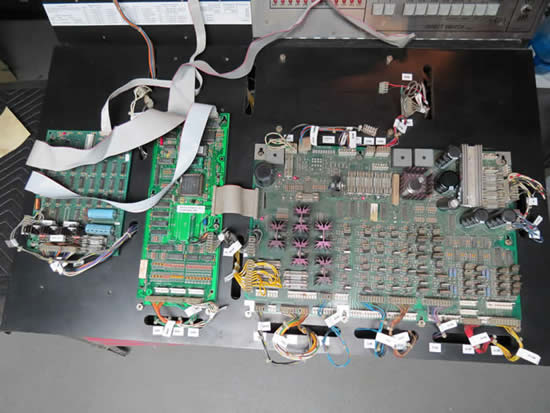

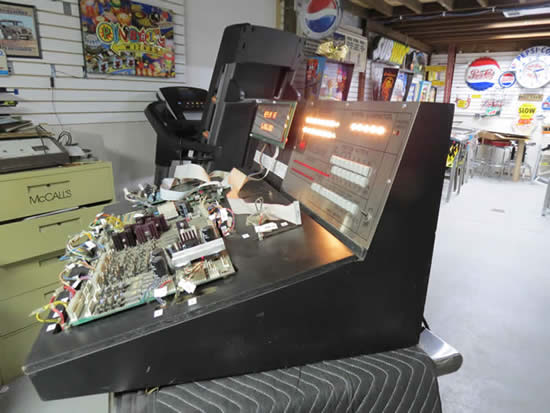

This is Elkhart Pinball’s. This is a working test fixture
This tester comes with the

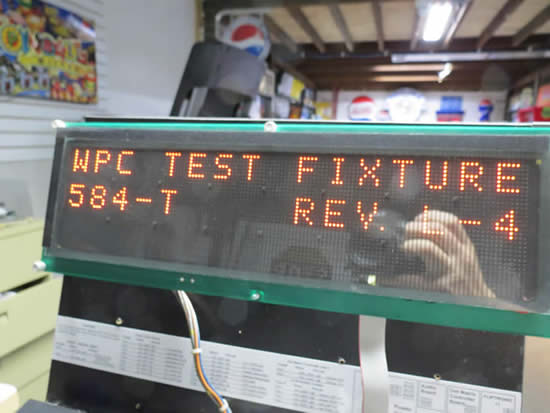

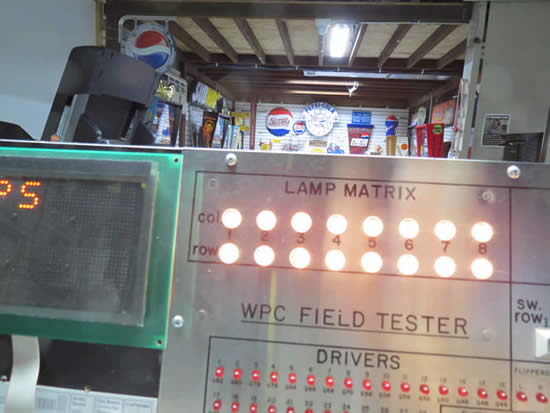

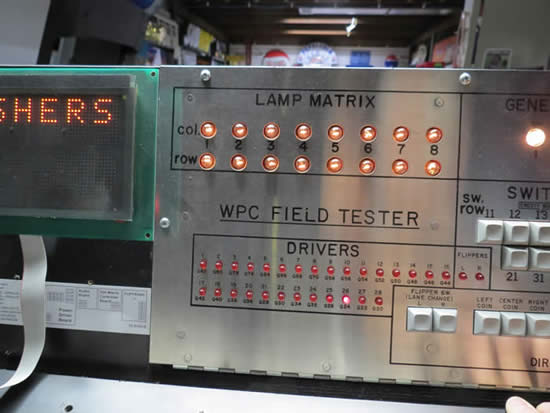

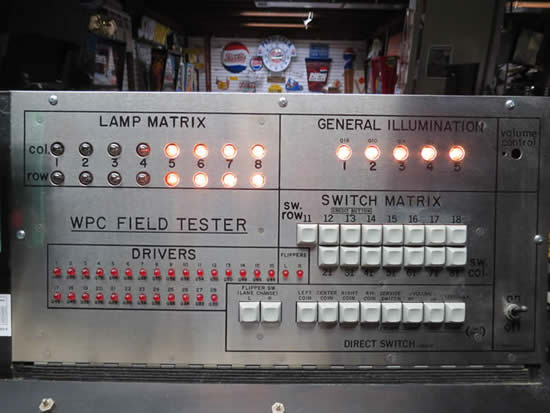

WPC Field Tester 584-T
A used working CPU A used working Power Driver Board.
A used working DMD Display Driver Board

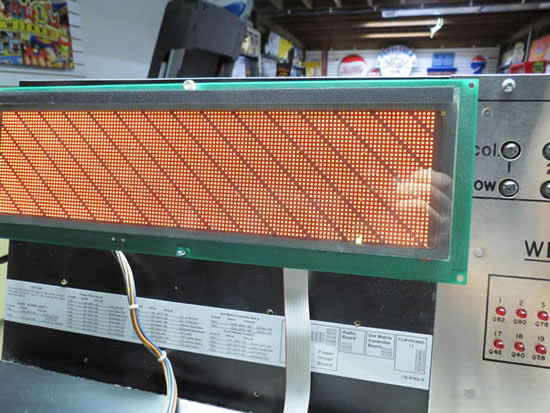

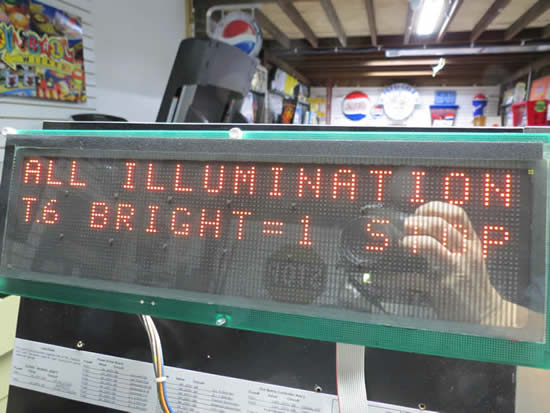

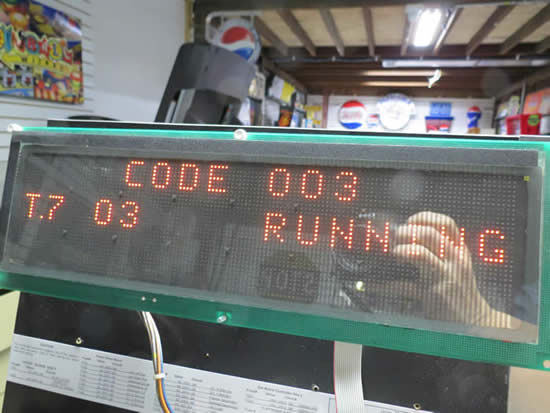

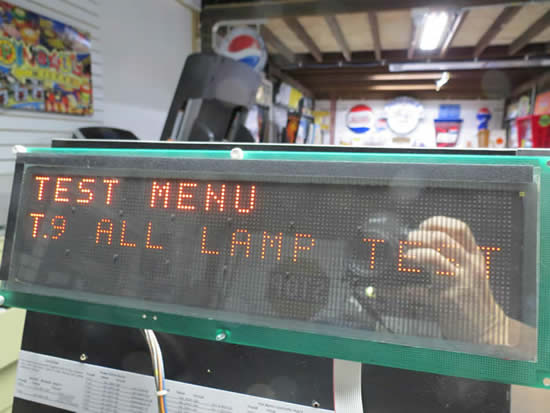

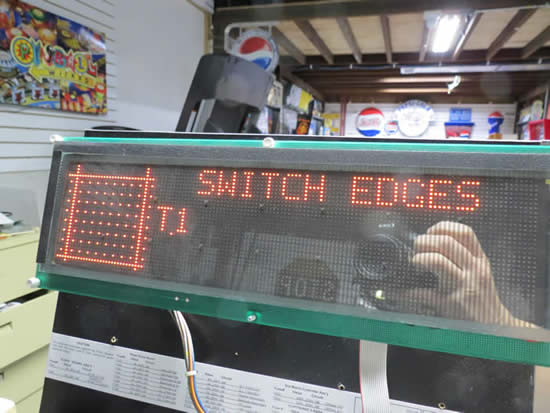

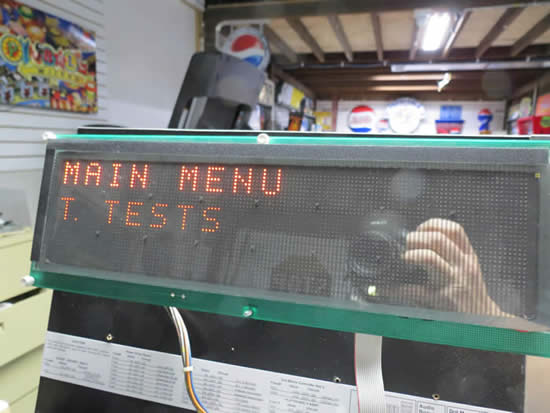

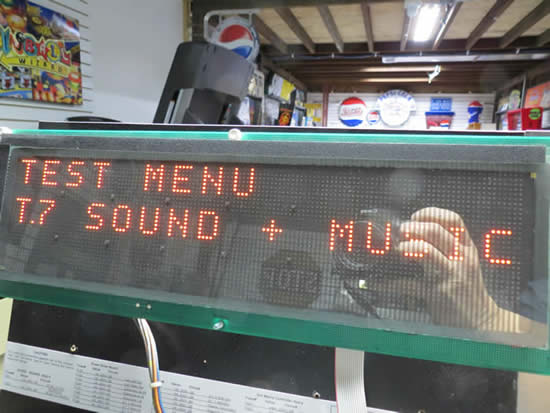

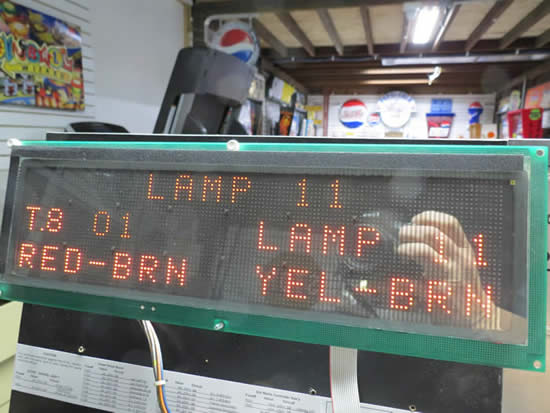

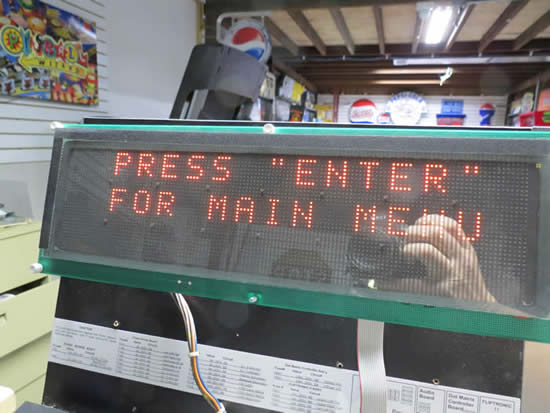

A used working DMD display board
A test rom L-4
All ribbon cables seen in picture
This test fixture will test the WPC
CPU’s & Switches from Williams 1990 Funhouse, 1991 Bally Harley Davidson to Williams 1994 Demolition Man, Bally 1994 Twilight Zone
Power Driver Board from Williams 1990 Funhouse, 1991 Bally Harley Davidson to Williams 1995 Jack-Bot, Bally 1995 Who Donnit
DMD Driver Board from Williams 1991 Terminator 2, Bally 1991 Gilligan’s Island to Williams 1995 Jack-Bot, Bally 1995 Who Donnit
It can also test some of the sound boards, not sure which ones, I never used it to sound boards.

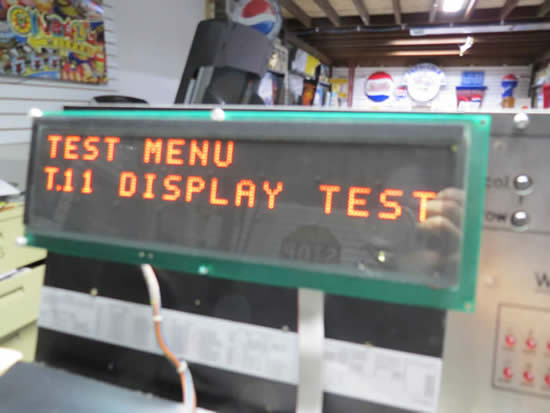

It can also test WPC Alphanumeric Displays if you have the Display Driver and Displays and text rom (Does not come with)

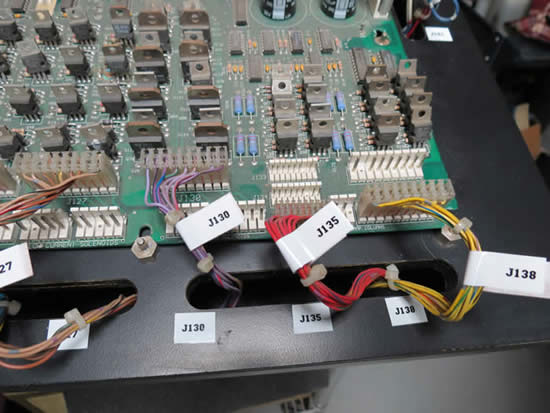

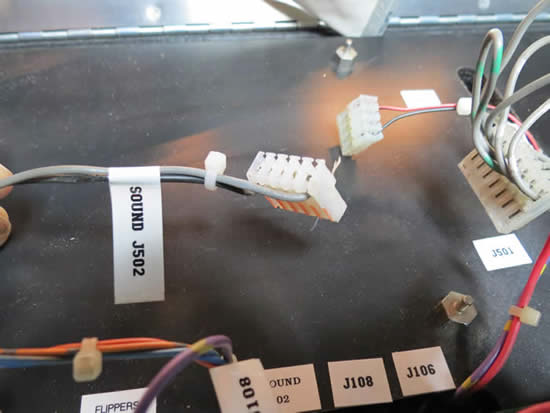

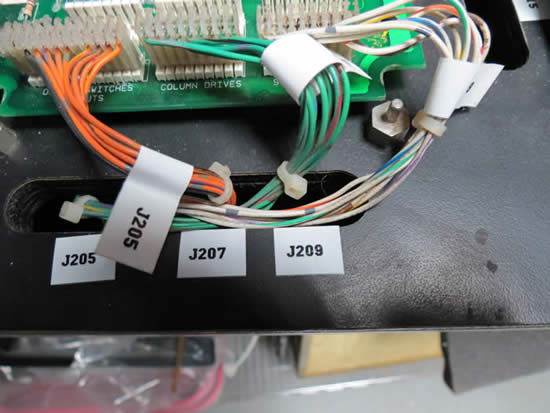

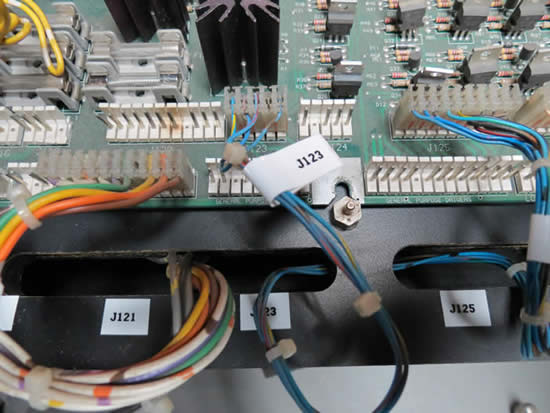

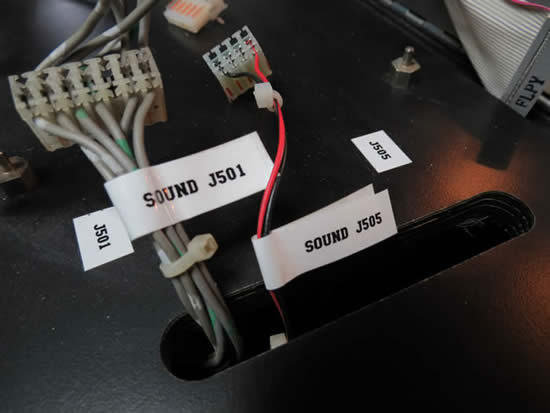

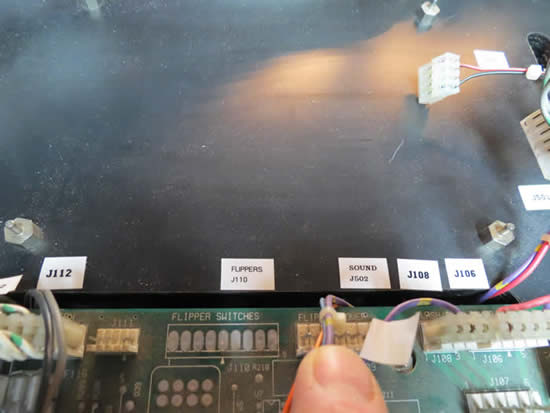

I have labeled all wires and Tester so you plug the right plug in the right spot, so you wont blow anything up. Also comes with a fuse chart list.
Thanks for looking
